HS Code: 59113200
Transport Package: Plywood Case, Pallet
Material: Polyvinylidene Fluoride(PVDF)
Max length: 100m
Key word: Paper Machine Clothing, Cylinder Mould Paper Machine, Polyester Shrinks Cover Fabric, Thickener Drum Filter, Shrinkable Sleeve, Shrink Grid, Cooking Plant Mesh Belt, Tissue Machine, Toilet Napkin paper mill, Recycled Short fiber Pulp, Softwood Hardwood Cellulose Virgin Pulp
Categories: Shrinkable Fabrics
 |

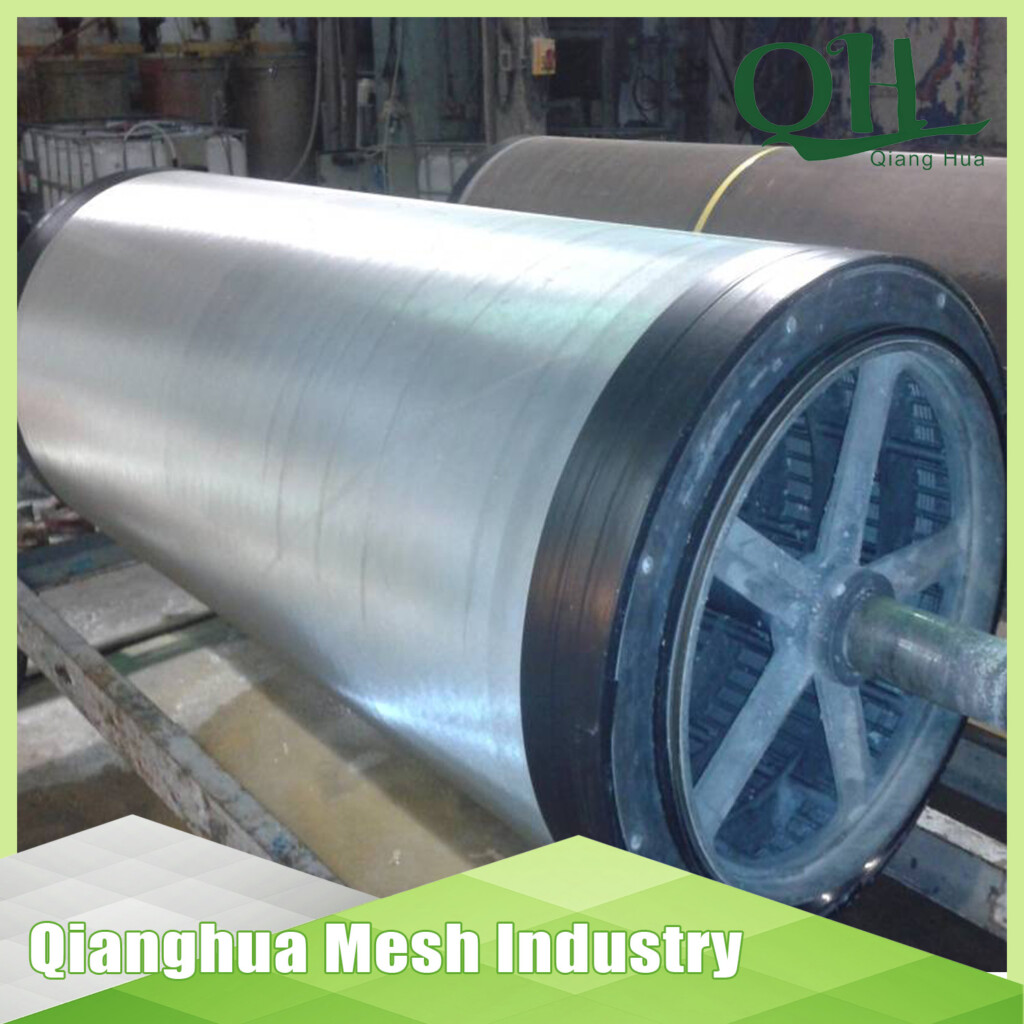

PVDF shrinks cover fabric used in Cylinder Mould paper making machine. We produce PVDF shrinks cover fabric against diameter of cylinder mould. Including: Dia 1.25m, Dia 1.5m, Dia 1.75m, Dia 2.0m, Dia 2.5m. Range of mesh count: from 12 mesh up to 120 mesh count. Material: Polyester, Polyamide, Polyethylene. Color: White. Benefits: No seam marking, Flat surface, Not easily cracked, Long life time, Good air permeability. Application: Used in cylinder mould machine |
 |
 |
| Technical data sheet | Single layer |
| Material | polyvinylidene fluoride (PVDF) |
| Warp thread | 0.4mm |
| Weft thread | 0.5mm |
| Warp density | 14 thread/cm |
| Weft density | 8 thread/cm |
| Thickness | 1.12mm |
| Air permeability–at100Pa | 950CFM |
| Why Choose Our PVDF Shrinkable Fabrics?
1. Excellent Chemical Resistance: PVDF mesh can withstand exposure to acids, alkalis, and solvents, making it ideal for filtration and separation in demanding environments. |
 |
 |
PVDF (Polyvinylidene Fluoride) Shrinkable Fabrics is a high-performance material known for its exceptional durability and chemical resistance. It is widely used in industries requiring precision and reliability, especially in applications involving harsh environments. |
| Why Choose Our PVDF Shrinkable Fabrics?
1. Excellent Chemical Resistance: PVDF mesh can withstand exposure to acids, alkalis, and solvents, making it ideal for filtration and separation in demanding environments. |
|
|
PVDF (Polyvinylidene Fluoride) Shrinkable Fabrics is a high-performance material known for its exceptional durability and chemical resistance. It is widely used in industries requiring precision and reliability, especially in applications involving harsh environments. |
Qianghua mesh focused in pulp and paper industry, municipal wastewater treatment, juice production line, nonwoven production line, corrugated board production line and so on.
Main products: Forming fabrics, Dryer fabric, Press felt, Filter belt, belt for Nonwoven, Corrugator belt...
