HS Code: 59100000
Transport Package: Plywood Case, Pallet
Material: Synthetic Fiber
Max Width: 3.6m
Max length: 100m
Key word: Woven Type Corrugated Felt Cloth, Corrugated Machine, Carton Packaging Box Making, Paper Board, Duplex Cardboard
Categories: Corrugator Belt
 |

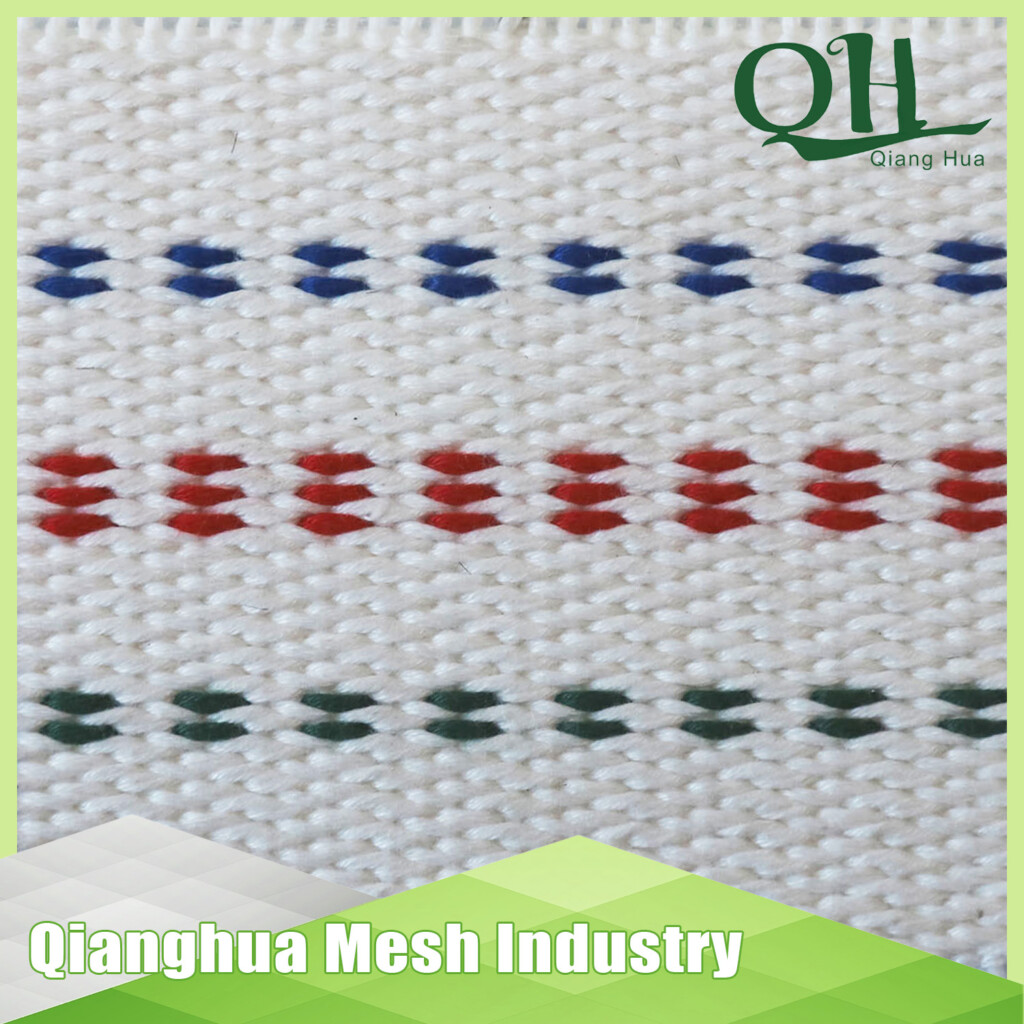

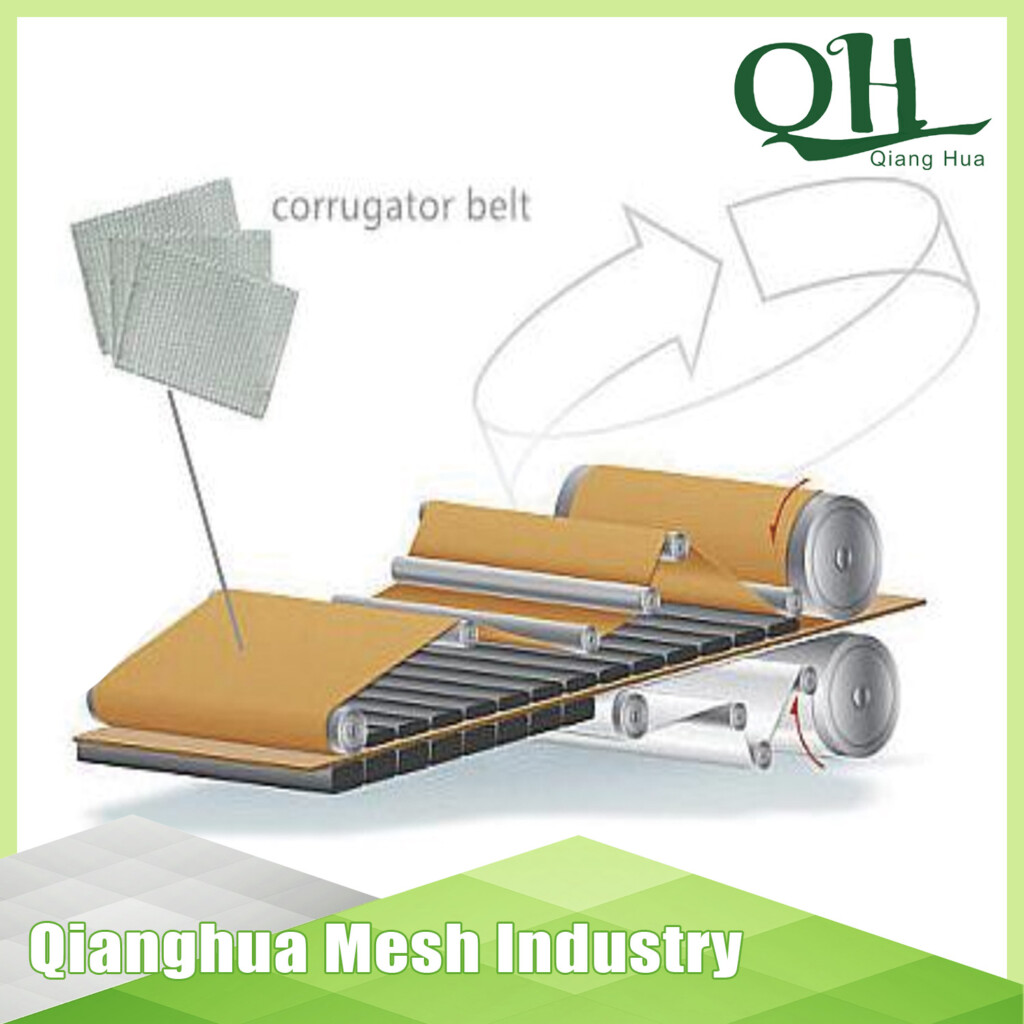

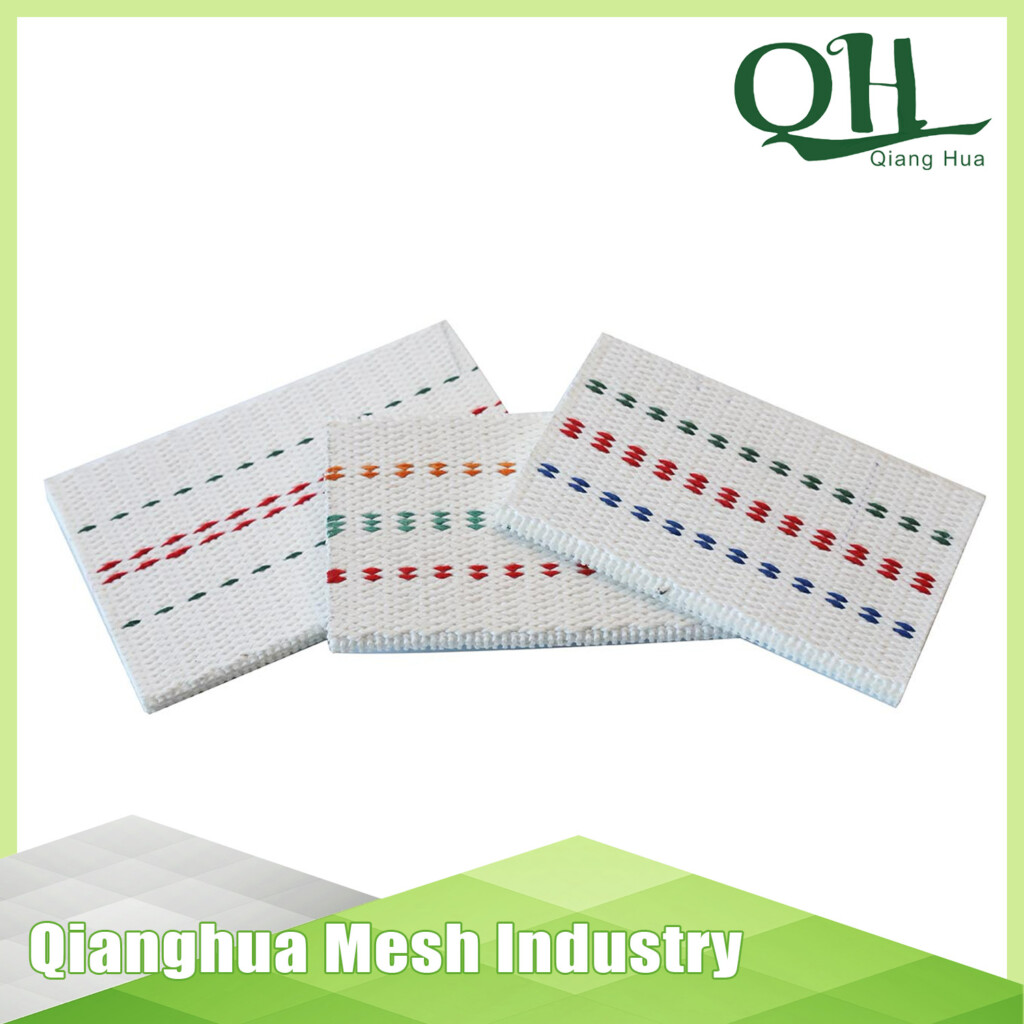

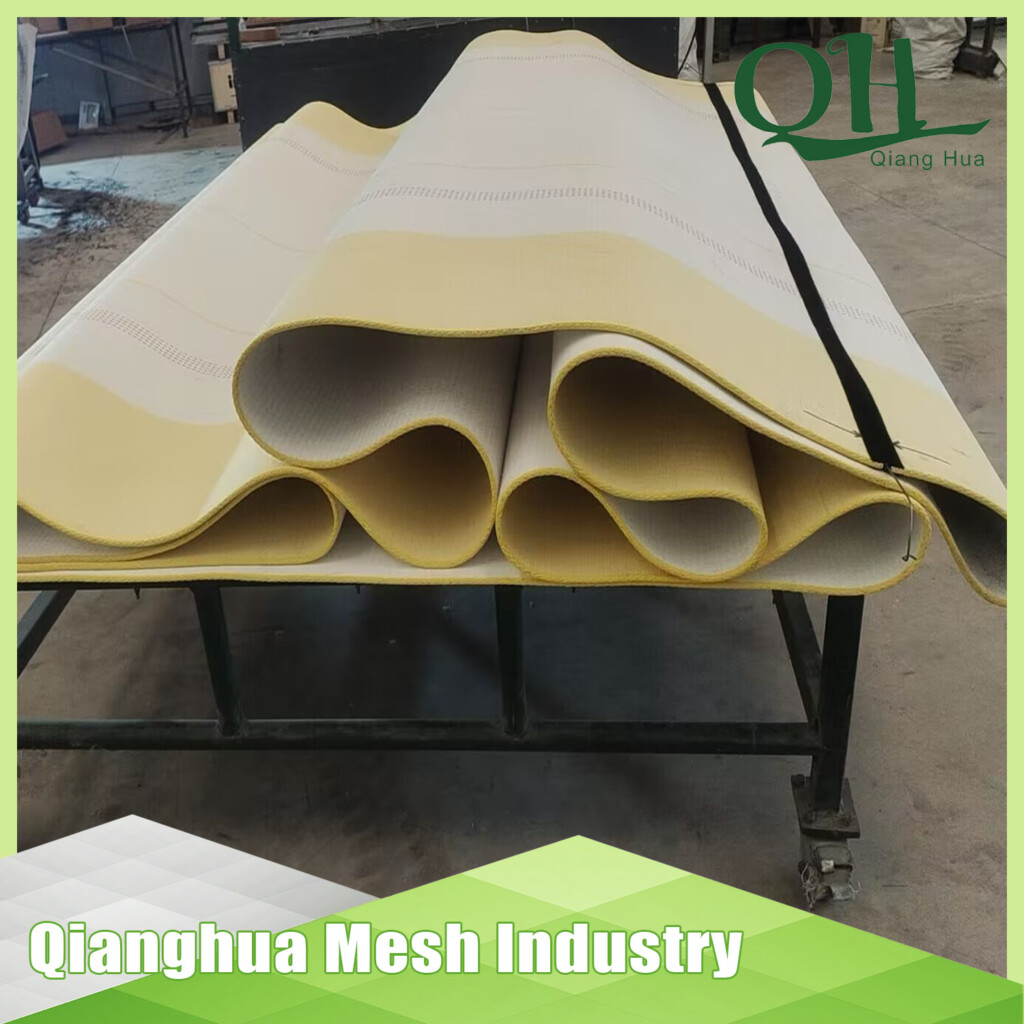

Corrugator belt is used to produce all kinds of corrugated board. It is made of the high grade PET continuous filament yarn with high tension and low flexibility. Our special structure design ensure the hydrophilic and drying ability. |
| Raw Materials | 100% Synthetic Fiber |
| Thickness | 9+/-0.3mm |
| Width | 1600mm-3000mm |
| Heat-resistance | constant load 160ºC short-time load 200ºC melting point 254ºC |
| Tensile strength | >65 Mpa |
| Weight per unit | 7.2+/-0.3 kg/m2 |
| Coefficient of friction | 0.43μ |
| Air permeability | 2.21 m3/m2.min |
| Suitable for machine speed | 200 -300m/min |
| Minimum Turning Radius | R70 |
 |
 |
Why Choose Our Corrugated Cloth Belt?
1. High Durability
Our corrugating fabric is made from high-quality materials, ensuring excellent wear resistance and maintaining performance over a long production period, reducing the frequency of replacement.
2. Stable Production Results
The high-quality corrugating fabric ensures more consistent corrugating effects, resulting in better shape and improved carton quality.
3. Excellent Adaptability
It is suitable for different types of paper and production conditions, ensuring efficient performance in various working environments.
4. Increased Production Efficiency
By reducing failure rates and maintenance costs, our corrugating fabric helps improve production efficiency and save costs.
 |

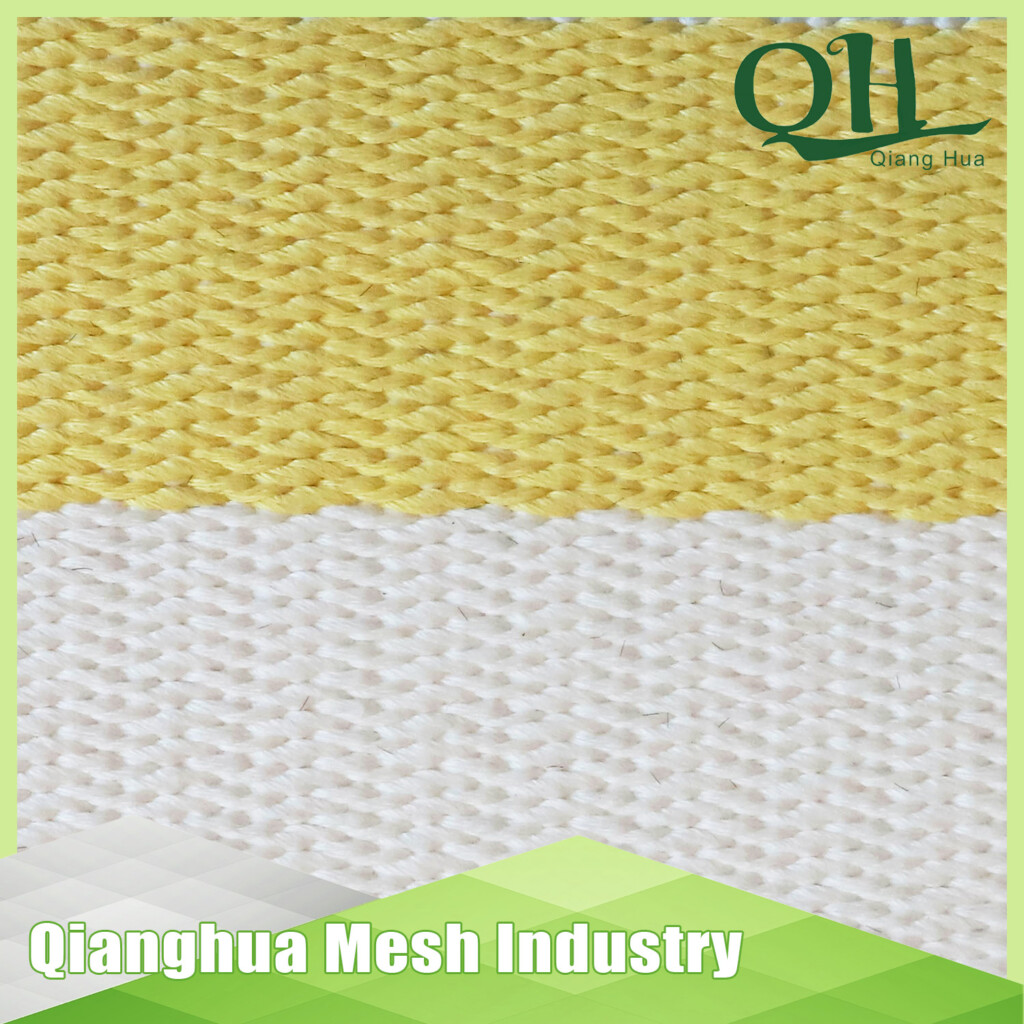

High speed Corrugator belt with Kevlar (Low Noise) The kevlar yarns are customized to add on the two edges of corrugator belts. The edges with kevlar can resist the temperature ---->350 degree. |

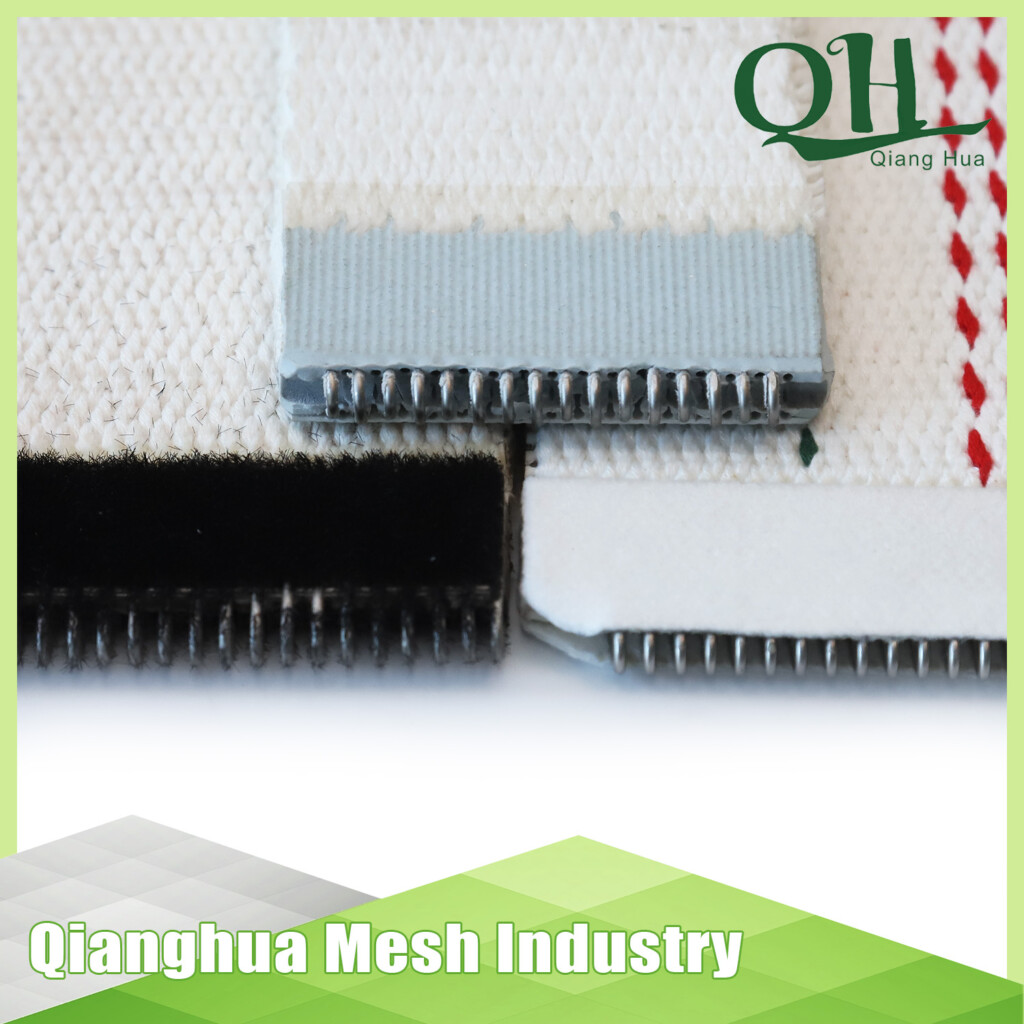

| We have Three kinds of Clipper seam:
Flocking, Covering cloth, Rubber coated. Flocking Seam is used more now. Covering cloth is very classic. |
 |
|
|
Why Choose Our Corrugated Cloth Belt?
1. High Durability
Our corrugating fabric is made from high-quality materials, ensuring excellent wear resistance and maintaining performance over a long production period, reducing the frequency of replacement.
2. Stable Production Results
The high-quality corrugating fabric ensures more consistent corrugating effects, resulting in better shape and improved carton quality.
3. Excellent Adaptability
It is suitable for different types of paper and production conditions, ensuring efficient performance in various working environments.
4. Increased Production Efficiency
By reducing failure rates and maintenance costs, our corrugating fabric helps improve production efficiency and save costs.
|
High speed Corrugator belt with Kevlar (Low Noise) The kevlar yarns are customized to add on the two edges of corrugator belts. The edges with kevlar can resist the temperature ---->350 degree. |
| We have Three kinds of Clipper seam:
Flocking, Covering cloth, Rubber coated. Flocking Seam is used more now. Covering cloth is very classic. |
|
Qianghua mesh focused in pulp and paper industry, municipal wastewater treatment, juice production line, nonwoven production line, corrugated board production line and so on.
Main products: Forming fabrics, Dryer fabric, Press felt, Filter belt, belt for Nonwoven, Corrugator belt...
